Axially-Split Multi-Stage Pumps

Between Bearing Pumps

Axially-split multi-stage pumps are high-pressure centrifugal pumps designed to handle large volumes of fluid with precise control and exceptional reliability. The pump casing is split along the horizontal axis, making internal components easily accessible for maintenance, while the multi-stage configuration allows for significant pressure generation through a series of impellers arranged in sequence.

These pumps are ideal for demanding applications such as water transmission, boiler feed systems, and high-pressure industrial processes. They are widely used in power plants, water utilities, oil and gas, and mining industries.

Main benefits
Main Applications
Main Design Features
Key Characteristics
Performance range

High Pressure Output: Multi-stage design enables the pump to generate very high discharge pressures.
Ease of Maintenance: Axially-split casing allows easy inspection and maintenance without disturbing the suction/discharge piping.
Long-Term Durability: Heavy-duty construction and robust design ensure long service life under continuous operation.
Precision Performance: Excellent hydraulic balance and efficiency even under fluctuating loads.
Versatile Design: Configurable with different materials and impeller stages to match various operational needs.

High-pressure water transmission and boosting
Boiler feed water in thermal and nuclear power stations
Oil pipeline boosting and transfer
Desalination plants (high-pressure feed)
Chemical and petrochemical industries
Mine dewatering and tailing disposal
Industrial cleaning and reverse osmosis systems

Axially-split horizontal casing
Multiple impellers for staged pressure increase
Centerline or foot-mounted casing options
Replaceable wear rings and balance drums for performance and longevity
Available in single or double-suction first stage for flexibility
API 610 or ISO 5199 compliance in design (depending on application)

Flow Rate: Up to 10,000 m³/h
Head: Up to 1500 meters or more
Temperature Range: -10°C to +180°C
Pressure: Up to 150 bar
Materials: Cast iron, carbon steel, stainless steel, duplex, or custom alloys based on media compatibility

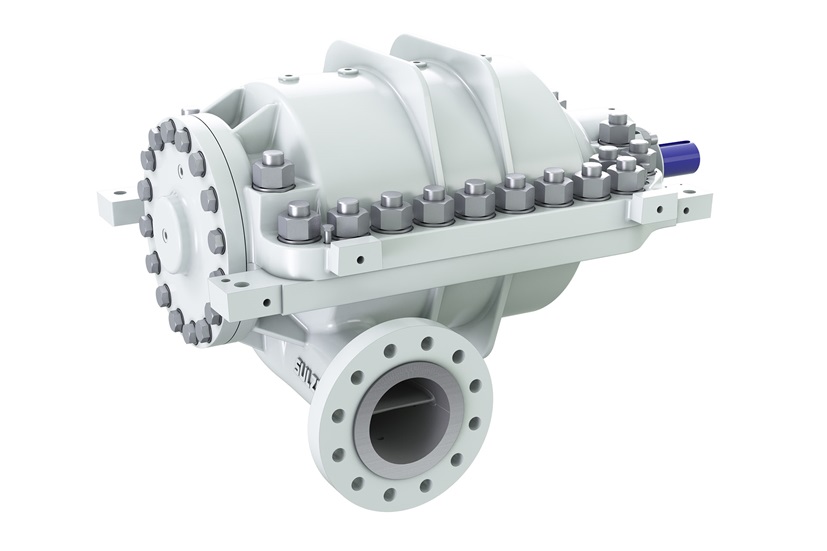

msn-ro_axial_split_multistage_membran_feed_pump
