Axially-Split One and Two Stage Pumps

Between Bearing Pumps

Axially-split one and two stage pumps are robust, high-performance centrifugal pumps designed for applications that demand high flow rates, efficiency, and reliable operation in the most demanding industrial environments. These pumps are engineered with a horizontal split casing, allowing for easy access to internal components for maintenance without disturbing the piping system.

They are available in both single-stage and two-stage configurations to accommodate varying pressure requirements and are commonly used in power plants, oil & gas industries, water utilities, and large-scale industrial applications.

Main benefits
Main Applications
Main Design Features
Key Characteristics
Performance range

Easy Maintenance Access: Axially-split casing design allows for rapid disassembly without disturbing motor or piping.
High Efficiency: Optimized hydraulic performance for reduced energy consumption.
Customizable Design: Available in one or two stages depending on pressure requirements.
Durability: Designed for high-pressure and high-temperature services.
Low Operating Costs: Long service life and minimal downtime.

Power generation (cooling water, boiler feed)
Oil & gas (pipeline, transfer, refinery)
Water transmission & distribution
Desalination plants
Petrochemical and chemical processing
Irrigation and flood control

Horizontal, axially-split casing
Double-suction impellers for hydraulic balance (in many models)
One or two-stage configurations
Replaceable wear rings for extended pump life
Designed according to international standards like API 610 or ISO\

Flow Rate: Up to 30,000 m³/h (depending on model)
Head: Up to 300 meters
Temperature Range: -20°C to +200°C
Pressure: Up to 40 bar
Materials: Carbon steel, stainless steel, duplex, super duplex, or custom alloys

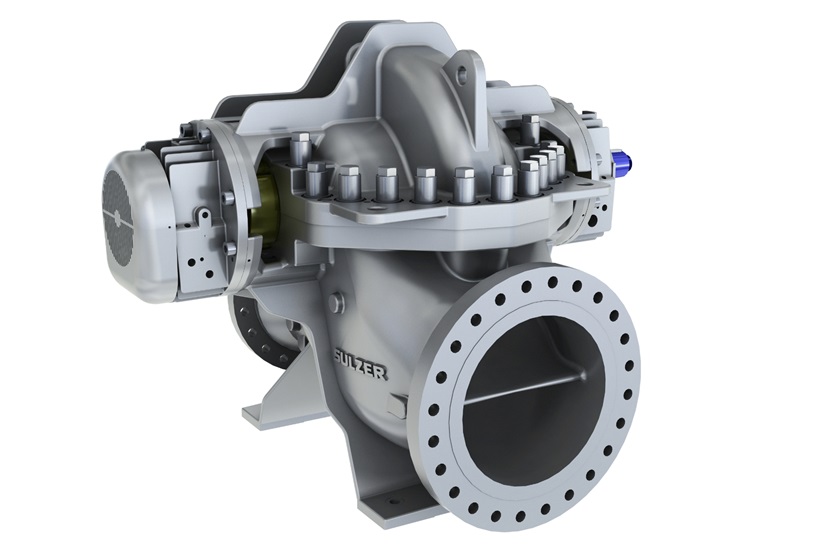

hsa_axiallysplit_singlestage_doublesuctionpump

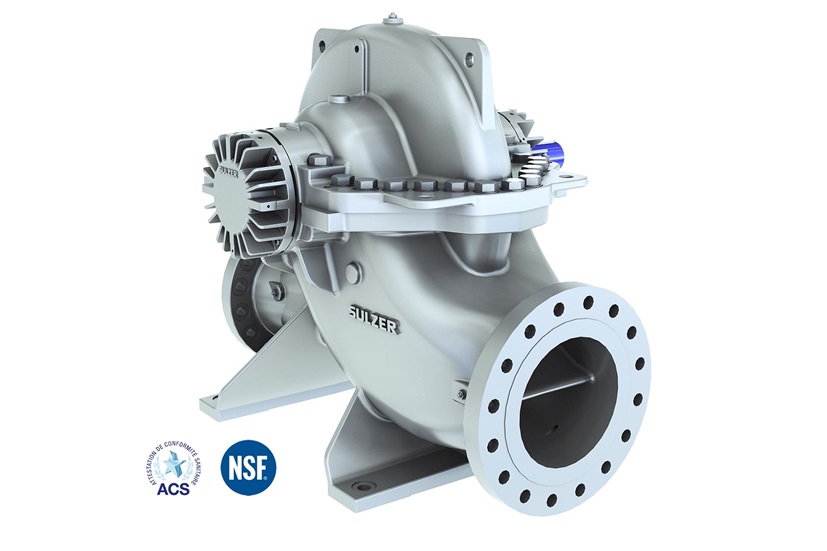

smd_axially_split_casing_double_suction_pump_clean_potable_water_with_certificates
