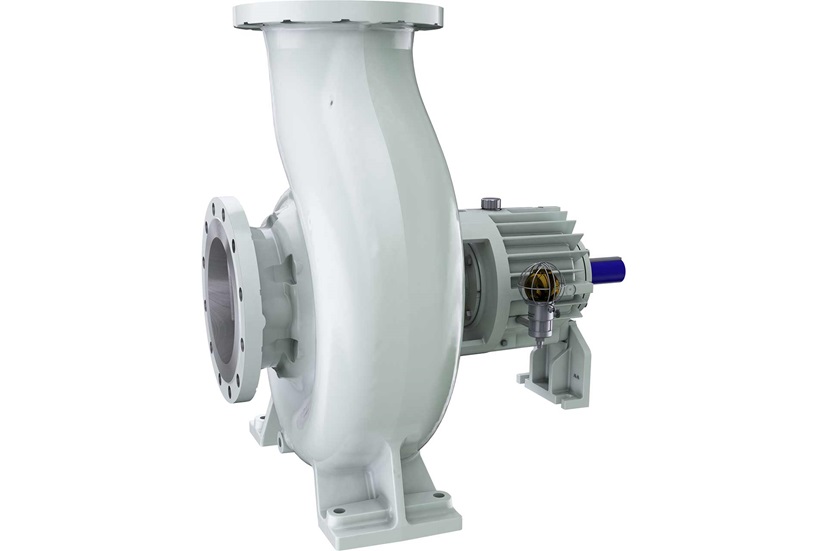

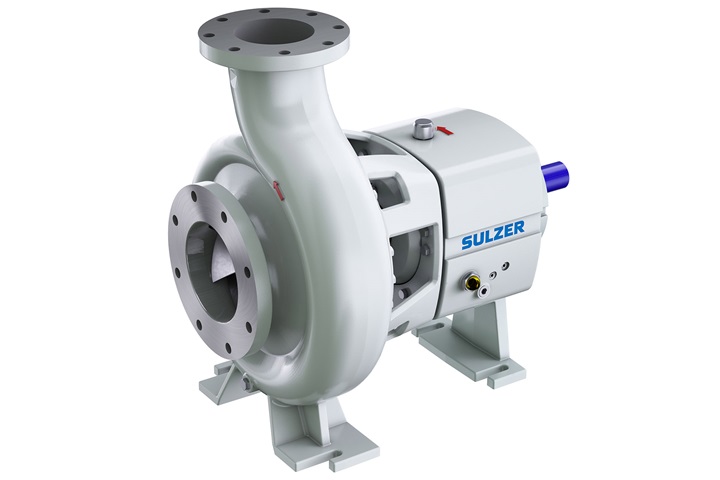

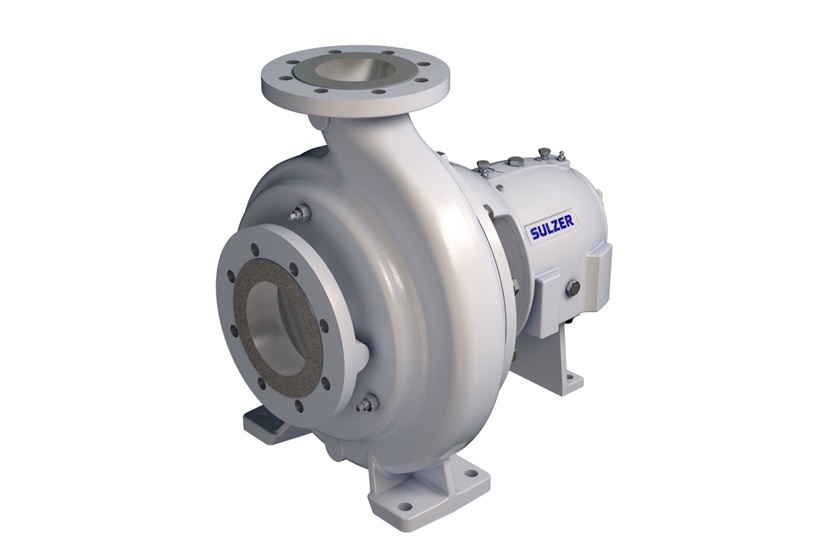

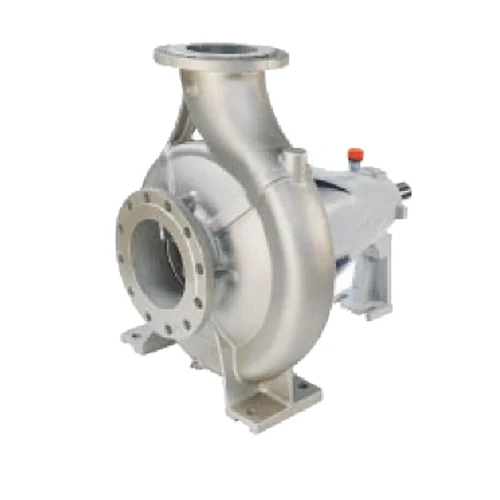

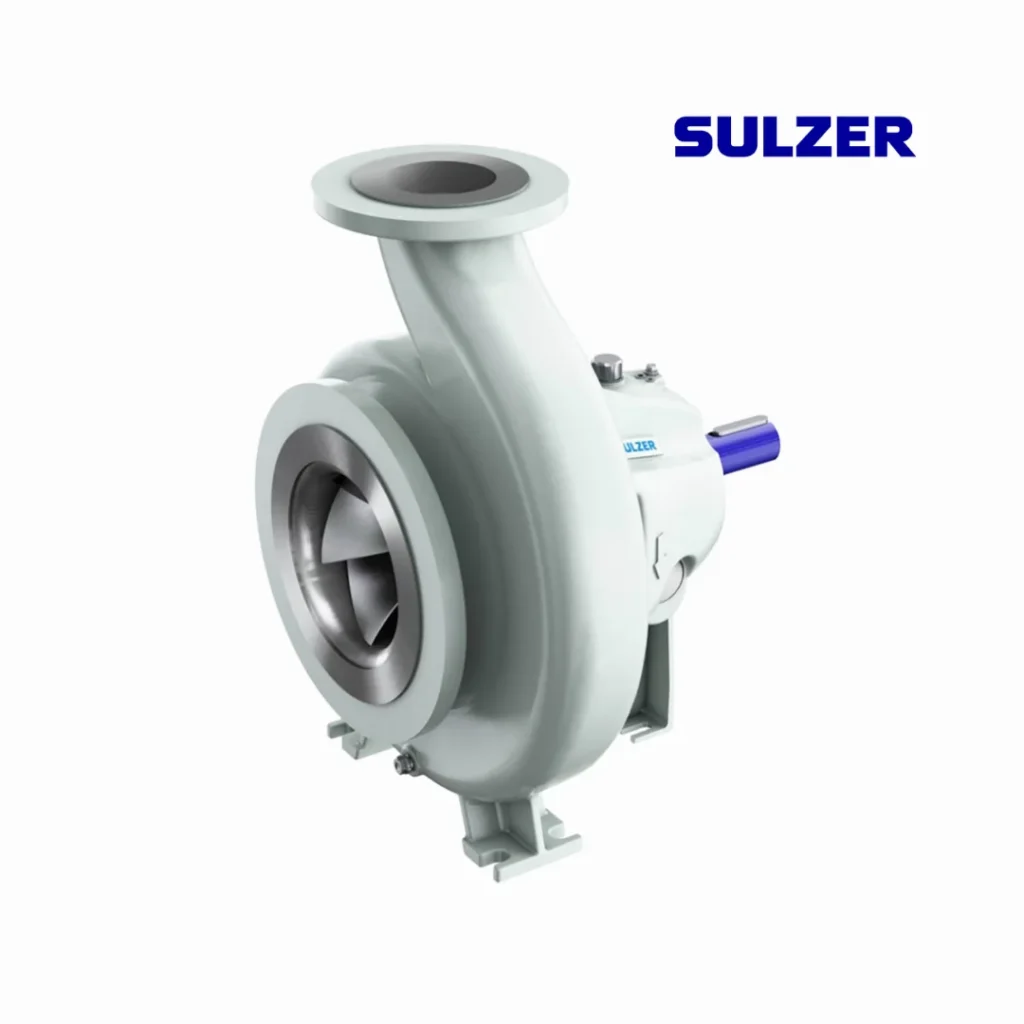

End-Suction Single-Stage Process Pump

• Energy Efficient Operation
  Designed to exceed global energy efficiency standards, significantly reducing power consumption and operating costs.
• Low Total Cost of Ownership
  Fewer maintenance needs, longer service intervals, and high reliability result in minimized downtime and lifecycle cost.
• Robust & Durable Design
  Engineered to handle aggressive and corrosive fluids, ensuring excellent wear resistance and mechanical strength.
• Easy Maintenance & Serviceability
  Modular components and back pull-out design enable quick inspection and replacement, reducing maintenance time.

• ISO 5199 Compliance: Built to meet the international standard for chemical process pumps ensuring reliability and uniformity.

• Back Pull-Out Design: Enables easy maintenance without disturbing the pipework or motor alignment.

• Closed Impeller with Hydraulic Balancing: Enhances efficiency and reduces axial thrust for longer bearing life.

• Robust Bearing Housing: Designed for high-load capacity and minimal vibration.

• Replaceable Wear Rings: Ensures long-term hydraulic performance and easy restoration.

• Standardized Flange Dimensions: Allows for easy installation and interchangeability.

• Optimized Shaft Seal Chamber: Accommodates various mechanical seal types (single, double, cartridge).

• Modular Construction: Reduces parts inventory and simplifies servicing.

• Capacity: Up to 2,000 m³/h

• Head: Up to 160 meters

• Operating Pressure: Up to 16 bar

• Temperature Range: From -40°C to +180°C, depending on materials

• Materials of Construction: Available in cast iron, stainless steel, duplex, super duplex, and exotic alloys

• Seal Options: Gland packing, single/double mechanical seals, cartridge seals

• Mounting Configuration: Horizontal foot-mounted for stability and easy alignment

Industrial Water and Effluent Treatment

Efficient handling of raw water, wastewater, and chemical dosing to ensure reliable treatment, reuse, or safe discharge of industrial effluents in compliance with environmental standards.

Lithium Applications

Designed for high-performance fluid transfer in lithium extraction and processing, including brine handling, reagent dosing, and chemical circulation in battery-grade lithium production.

Mine Water Management

Robust pumping solutions for dewatering operations, slurry handling, and water recycling in mining environments, ensuring operational continuity and safety in harsh conditions.
