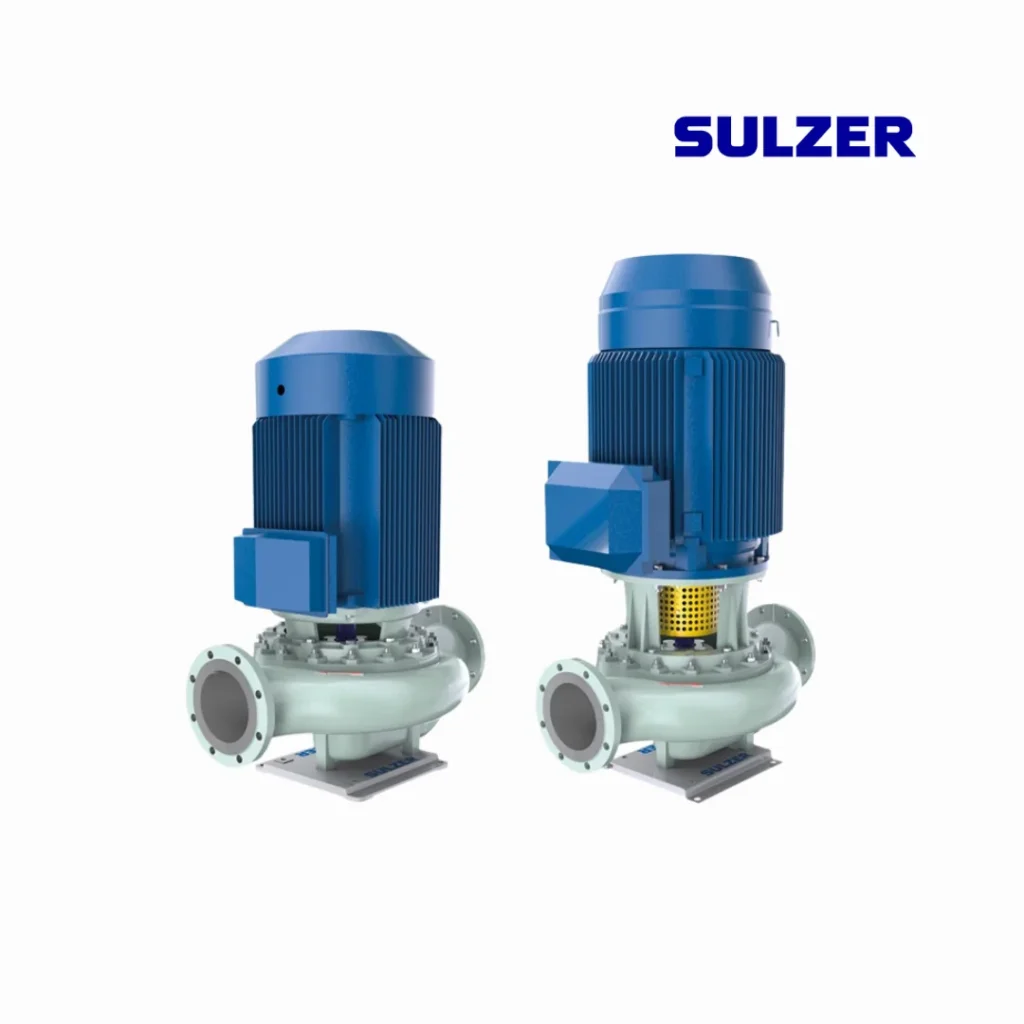

Inline Process Pump

Efficient. Compact. Reliable.

The Inline Process Pump is a highly efficient, space-saving pump solution designed for continuous fluid handling in various industrial applications. Engineered for direct integration into pipeline systems, these pumps are known for their vertical configuration, minimal footprint, and low maintenance requirements.

By aligning both the suction and discharge ports on the same axis, the Inline Process Pump allows for a streamlined flow path, eliminating the need for elaborate piping arrangements. It is ideal for operations where space, reliability, and serviceability are critical.

Main benefits
Main Applications
Main Design Features
Key Characteristics
Performance range

Space-Efficient Design: Vertical in-line configuration allows for compact installations, especially in systems with limited space.
Easy Installation & Maintenance: No need for special alignment or baseplates; top-pull-out design makes servicing easier.
Cost-Effective Integration: Connects directly into pipelines, reducing the need for complex fittings and reducing installation costs.
Reliable Operation: Ideal for continuous duty with minimal vibration and noise.
Versatile Fluid Handling: Suitable for a broad range of clean or slightly contaminated liquids.

HVAC Systems (heating, ventilation, and air conditioning)
Chemical Process Industries
Water Circulation & Cooling Systems
Boiler Feed & Condensate Return
Oil & Gas Refining Plants
Food and Beverage Industries
General Industrial Utilities

Vertical In-Line Construction: Suction and discharge flanges are on the same centerline for compact piping layouts.
Back Pull-Out Design: Enables easy removal of rotating assembly without disturbing piping.
Hydraulically Balanced Impellers: Ensures low axial thrust and smoother operation.
Heavy-Duty Bearings: Designed to withstand high radial and axial loads.
Flexible Seal Options: Available with mechanical seals or gland packing to suit different process requirements.
Modular Construction: Allows customization for specific duty conditions.

Flow Rate: Up to 1500 m³/h
Head: Up to 100 meters
Operating Pressure: Up to 16 bar
Temperature Range: -10°C to +140°C (extended options available)
Material Options: Cast Iron, Ductile Iron, Stainless Steel, Bronze
Mounting Orientation: Vertical, In-Line
Seal Options: Single, Double Mechanical Seals, Gland Packing
