Megastar FR

High-Pressure Forged Valve

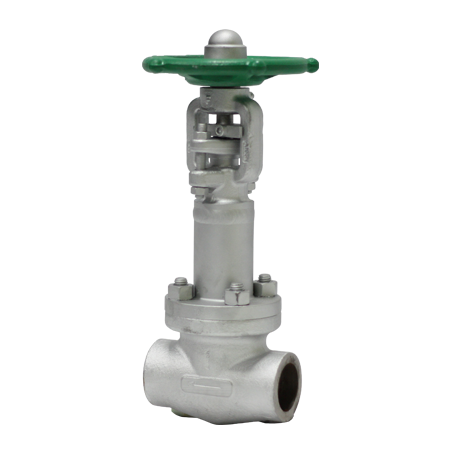

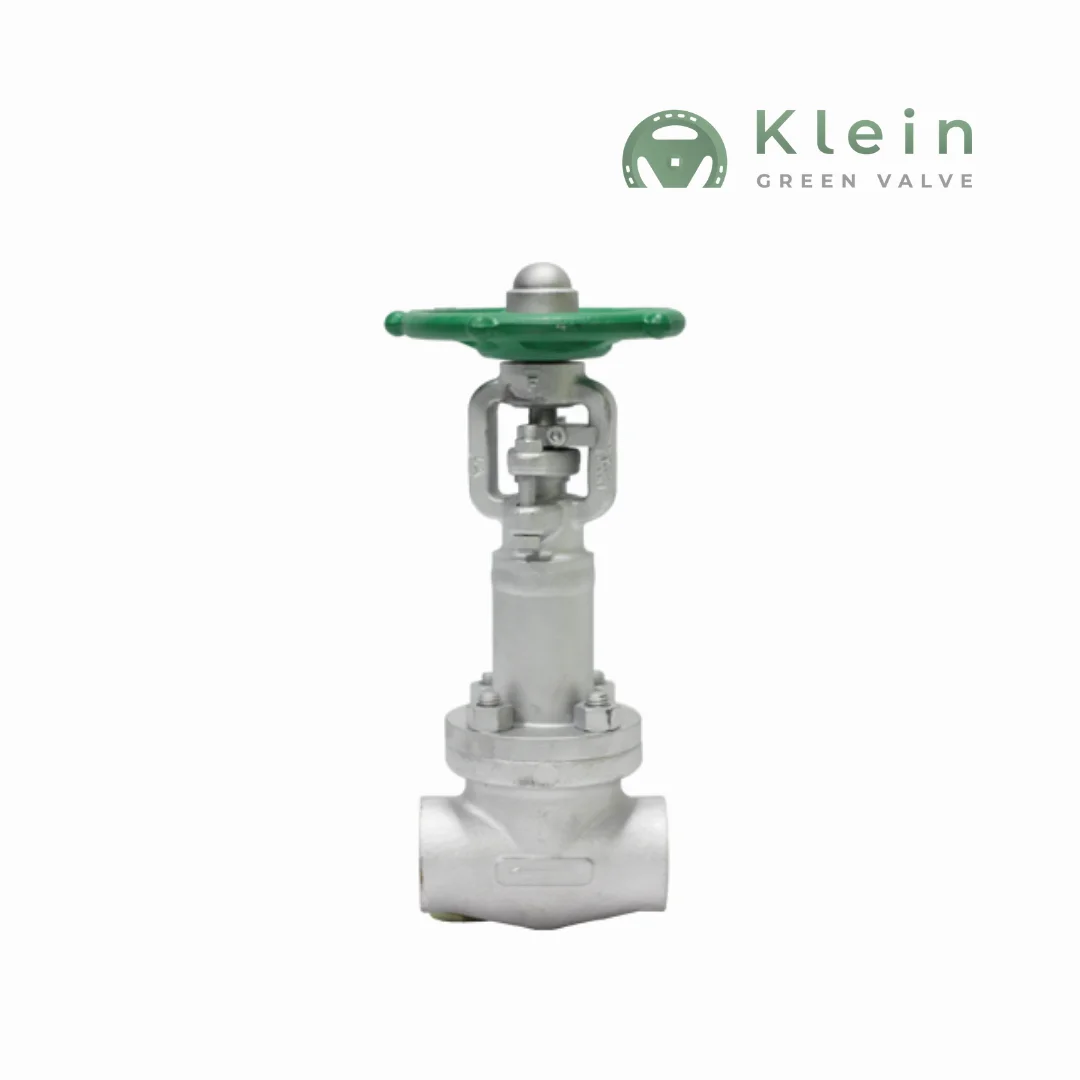

MEGASTAR FR by SL Tech is a high-performance forged valve engineered for critical flow control in high-pressure and high-temperature systems. Built with a corps droit (straight-body) design, Soupape CS (control valve) configuration, and constructed from carbon steel (acier carbone), it ensures exceptional durability, reliability, and safety in demanding industrial environments.

With DN 15 to DN 50 size options and pressure ratings up to ISO PN 100 / Class 600–800, MEGASTAR FR is suitable for systems where precision, pressure endurance, and leak-proof connections are essential.

Main benefits
Main Applications
Main Design Features
Key Characteristics
Performance range

Handles very high pressure: up to PN 100 / Class 800
Designed for DN 15 to DN 50 piping systems
Available with SW (Socket Weld) or BW (Butt Weld) ends for strong, permanent joints
CS (Control Valve) configuration for accurate flow management
Straight-body design for smooth and consistent flow
Constructed from forged carbon steel for superior strength
Ideal for space-constrained, high-stress applications

High-pressure steam and thermal systems
Oil & gas production and refining units
Chemical and process industry lines
Power generation plants
Marine & offshore systems with pressure-critical operations

Size Range: DN 15 to DN 50
Pressure Class: PN 50 to PN 100 / Class 300–800
Ends: Socket Weld (SW) or Butt Weld (BW)
Valve Type: Soupape CS (Control Valve)
Body Type: Straight (Corps Droit)
Material: Forged Carbon Steel
Standards: ISO / ANSI / ASME compliant

Property	Description
Material	Forged Carbon Steel (Acier Carbone)
Pressure Rating	PN 50 to PN 100 / Class 300–800
Connection Type	SW (Socket Weld) / BW (Butt Weld)
Valve Type	CS – Control Valve
Design	Straight Body (Corps Droit)
Size Range	DN 15 to DN 50

Working Pressure: Up to 100 bar
Temperature Resistance: –20°C to +500°C (depending on seal type)
Flow Media: Steam, oil, chemicals, gases, thermal fluids
Weld Endurance: Ideal for permanent, high-pressure installations
