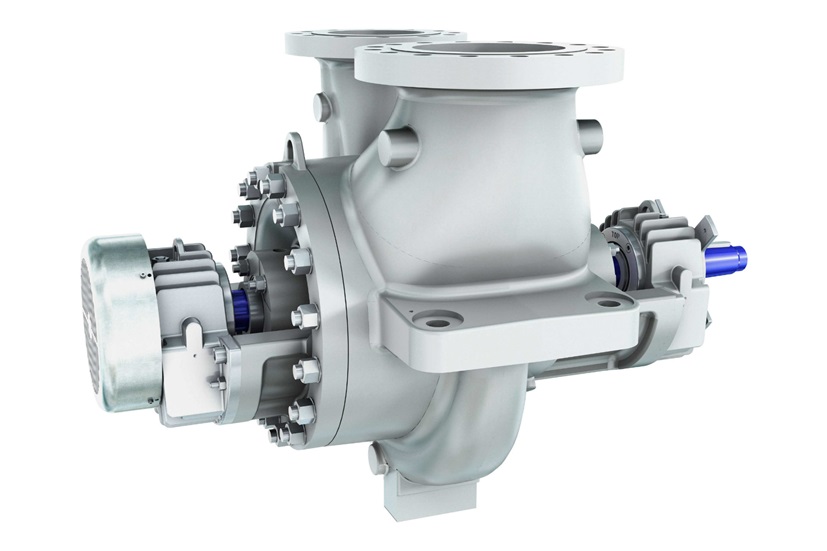

Radially-Split One and Two Stage Pumps

Between Bearing Pumps

Radially-split one and two stage pumps are robust centrifugal pumps designed to handle moderate to high flow rates and pressures in a wide range of industrial applications. Unlike axially-split pumps, their casing is split perpendicular to the shaft (radially), which offers enhanced pressure containment and structural strength. These pumps are commonly used where reliability, precision, and high performance are critical.Available in both single-stage and two-stage configurations, these pumps provide flexibility for various operating conditions while ensuring ease of maintenance and superior hydraulic efficiency.

Main benefits
Main Applications
Main Design Features
Key Characteristics
Performance range

Superior Pressure Handling: Radial split design ensures excellent containment of internal pressure, ideal for high-pressure systems.
Compact & Rigid Design: Enhanced mechanical integrity under dynamic operating conditions.
Simplified Maintenance: Top pull-out design allows for easy access to rotating elements without disturbing the piping.
Operational Flexibility: Available in one or two-stage versions for customized head and flow requirements.
High Efficiency: Optimized hydraulics reduce energy consumption and improve system performance.

Petrochemical and refinery applications
Chemical process industries
Boiler feed and condensate systems
High-pressure water injection
Pipeline and terminal operations
Power generation (steam and combined cycle plants)
General industrial services requiring high reliability

Radially-split casing for high structural integrity
Horizontal or vertical installation options
Centerline-mounted or foot-mounted designs
Closed or semi-open impeller options
API 610 / ISO 5199 compliant configurations
Heavy-duty bearing arrangements for extended life

Flow Range: Up to 3,000 m³/h
Head: Up to 600 meters
Temperature: -50°C to +350°C
Pressure: Up to 100 bar
Materials: Cast iron, stainless steel, carbon steel, duplex, and other special alloys
