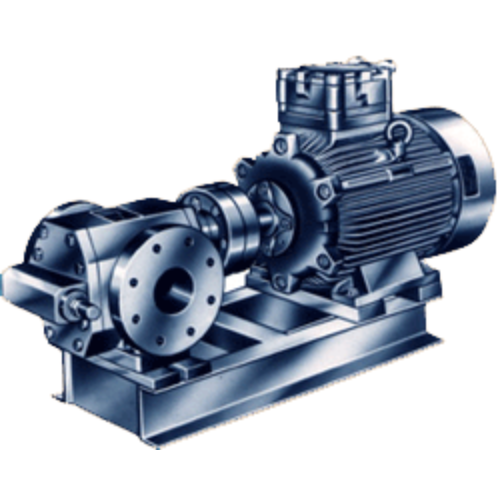

Transfer Gear Pump

Precision-engineered gear mechanism

At SL Tech, we provide high-performance Transfer Gear Pumps designed for efficient and continuous fluid transfer in industrial applications. These pumps are coupled with a motor and mounted on a common base frame with safety guards and couplings for reliable and safe operation.

Product Features:

Robust Design: Precision-engineered gear mechanism ensures smooth and noiseless operation.
Compact Unit: Motor-pump assembly mounted on a common base frame allows easy installation and maintenance.
Coupled with Motor: Ensures optimal performance and energy efficiency.
Protective Guard & Couplings: Enhances safety and durability in harsh environments.
Technical Specifications:
Capacity: Up to 6000 LPH (Litres per Hour)
Pressure: Up to 20 Kg/cm²

Main benefits
Main Applications
Main Design Features
Key Characteristics
Performance range

High Flow Accuracy: Ensures consistent fluid transfer without pulsation.
Robust Build Quality: Long-lasting performance even in heavy-duty industrial conditions.
Compact & Integrated Design: Pump and motor mounted on a common base frame with guard & couplings for easy installation.
Low Noise & Vibration: Quiet operation with minimal maintenance.
Energy Efficient: Optimized design reduces power consumption.

Oil Transfer (Lube & Fuel Oils)
Chemical Processing
Paints, Inks & Adhesives
Food & Beverage (non-edible oils)
Hydraulic Fluids & Coolants
Soap, Detergents & Viscous Liquids

Spur Gear Mechanism for smooth, non-pulsating flow
Coupled with Motor on a rigid base frame
Safety Guards & Flexible Couplings included
Self-priming Capabilities for efficient startup
Leak-Free Operation with mechanical seal options
Modular Construction for ease of service and customization

Property	Description
Pump Type	Positive Displacement – Gear Type
Mounting	Base Frame with Coupled Motor
Drive	Electric Motor
Flow Type	Continuous, Non-pulsating
Direction of Flow	Bi-directional (optional)
Material Options	Cast Iron, SS304, SS316 (on request)

Capacity: Up to 6000 LPH (Litres Per Hour)
Pressure: Up to 20 Kg/cm²
Viscosity Range: Up to 100,000 cSt
Temperature Range: -10°C to +150°C (based on material selection)
Speed: Up to 1500 RPM
Inlet/Outlet Size: As per requirement
